Huawei CSHF С+

Огляд

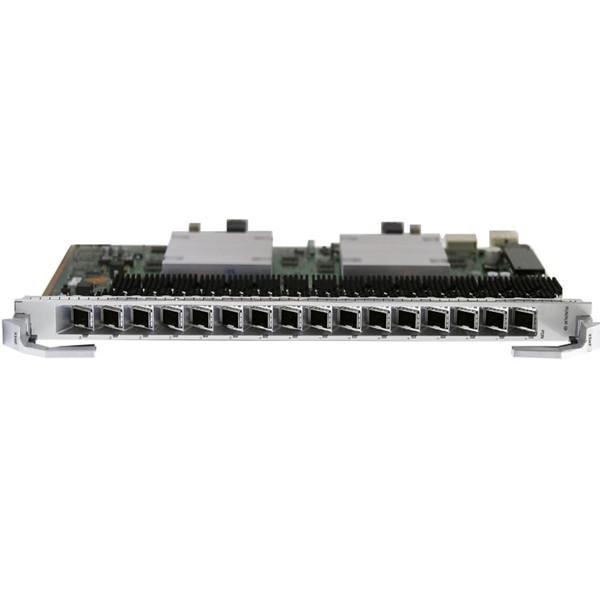

Плата сервісу Huawei CSHF є 16-портовою комбінованою платою інтерфейсу OLT для XGS-PON та GPON. Вона працює разом з оптичним мережевим пристроєм для надання послуг доступу XGS-PON та GPON. Ця плата використовується в обладнанні серій MA5800 та EA5800 і підтримує різноманітні інтерфейси, включаючи GPON, XG-PON, XGS-PON, GE та 10GE.

Характеристики

1. Huawei CSHF Service Board Product Specifications

2. Brand	Huawei
   Model	CSHF
   Port	16
   Type	C+ Module: One-fiber bidirectional optical module, class C+
   	B+ Module: One-fiber bidirectional optical module, class B+
   Operating Wavelength	C+/B+ Module:
   	GPON channel:
   	Tx: 1490 nm
   	Rx: 1310 nm
   	XGS-PON channel:
   	Tx: 1577 nm
   	Rx: 1270 nm
   Encapsulation Type	SFP+
   Port Rate	C+/B+ Module:
   	GPON channel:
   	Tx: 2.488 Gbit/s
   	Rx: 1.244 Gbit/s
   	XGS-PON channel:
   	Tx: 9.953 Gbit/s
   	Rx: 9.953/2.488 Gbit/s
   Minimun Output Optical Power	C+ Module:
   	GPON channel: 3 dBm
   	XGS-PON channel: 5 dBm
   	B+ Module:
   	GPON channel: 1.5 dBm
   	XGS-PON channel: 1 dBm
   Maximum Output Optical Power	C+ Module:
   	GPON channel: 7 dBm
   	XGS-PON channel: 8 dBm
   	B+ Module:
   	GPON channel: 5 dBm
   	XGS-PON channel: 4 dBm
   Maximum Receiver Sensitivity	C+ Module:
   	GPON channel: -32 dBm
   	XG-PON channel: -30.5 dBm
   	XGS-PON channel: -29 dBm
   	B+ Module:
   	GPON channel: -28 dBm
   	XG-PON channel: -26.5 dBm
   	XGS-PON channel: -25 dBm
   Optical Connector Type	SC
   Optical Fiber Type	Single-mode
   Overload Optical Power	C+ Module:
   	GPON channel: -12 dBm
   	XG-PON channel: -10 dBm
   	XGS-PON channel: -8 dBm
   	B+ Module:
   	GPON channel: -8 dBm
   	XG-PON channel: -6 dBm
   	XGS-PON channel: -4 dBm
   Extinction Ratio	8.2 dB
   Dimensions (W x D x H)	23.3 mm x 257.90 mm x 399.20 mm
   Power Consumption	Static: 51 W
   	Maximum: 99 W
   Operating temperature	-40°C to +55°C

3. Huawei CSHF Service Board Product Features
4. Support defense against system DoS (Denial of Service) attacks.
5. Support MAC address filtering function.
6. Support defense against ICMP/IP packet attacks.
7. Support source address routing filtering function.
8. Support blacklist function.
9. Support DHCP option82 to enhance the security of DHCP.
10. Support MAC address and port binding, support IP address and port binding.
11. Supports defense against MAC/IP spoofing attacks.
12. Support ONU/ONT SN (Serial Number)/Password authentication.
13. Support triple churing encryption.
14. GPON downstream adopts a method of encrypted broadcast transmission for different users, and supports AES (Advanced Encryption Standard) 128-bit encryption.
15. Support GPON Type B OLT dual-homing.
16. For dual-uplink networking, Smart Link and Monitor Link are supported.
17. Huawei CSHF Service Board Product and More Service Boards

18. GPON			XG-PON	XGS-PON	XG-PON and GPON Combo	XGS-PON and GPON Combo	Port
    HUAWEI	MA5608T/MA5680T/		XGBC				4
    	MA5683T	GPBD/GPBH	XGBD				8
    		GPFD					16
    	MA5800 X2/X7/X15/X17		XGHD	TWED/XSHD/	CGID/	CSHD	8
    				TWHD	CGHD
    		GPLF/GPSF/	XGSF	XSHF	CGHF	CSHF	16
    		GPUF/ GPHF
    ZTE	C300/C320/C350	GTGO	GTXO	GTTO	GTBO		8
    		GTGH					16
    	C600/C650/C680	GFGH	GFXH	GFTH	GFBN/	GFCH	16
    					GFBH
